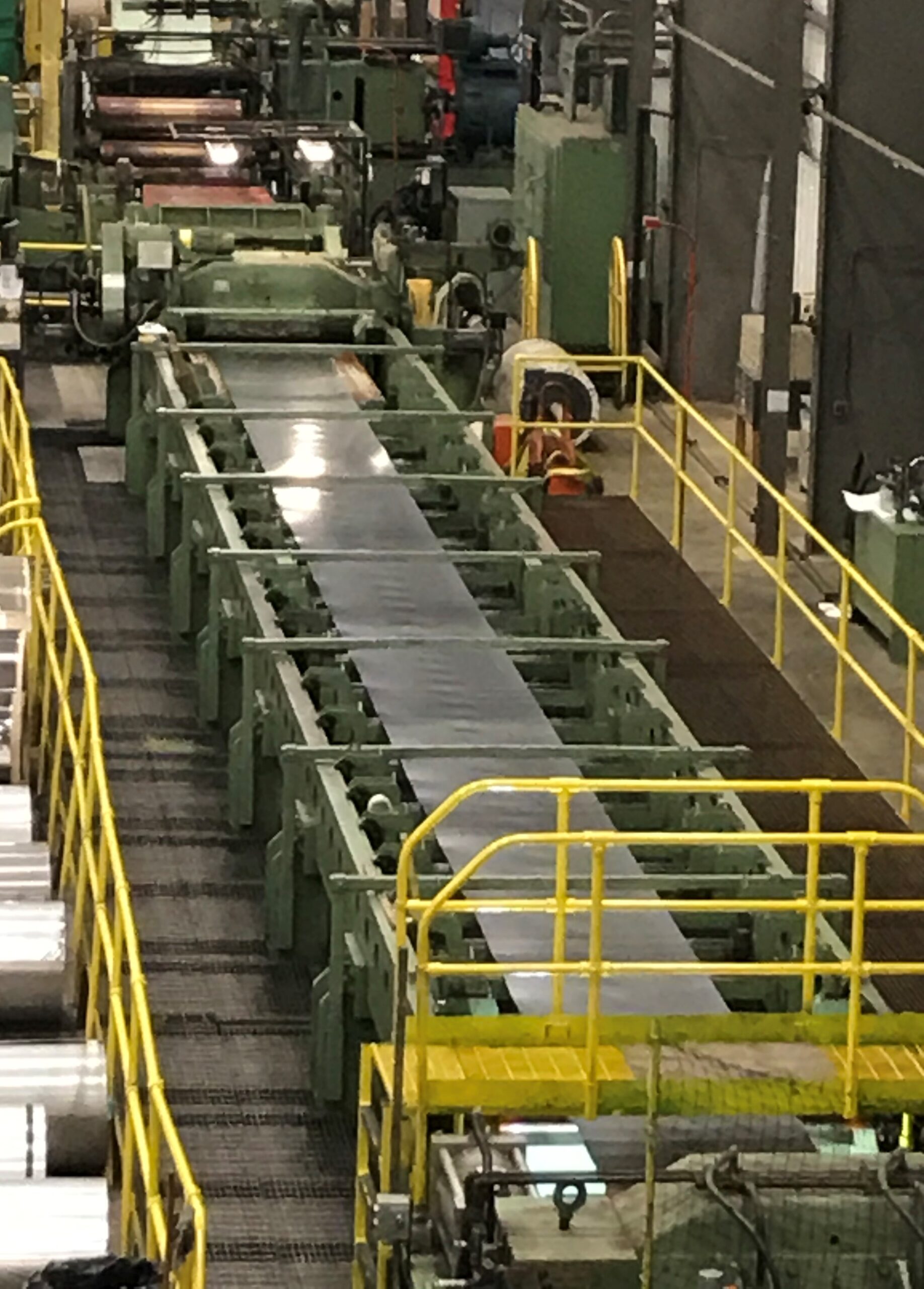

Our stretch leveler is ideal for surface critical items. Our pneumatic process and unique grippers will not leave marks on your material. We serve customers making truck fenders, exterior bus panels, architectural panels, exterior railcar panels, automotive trim, and many other highly visible, flatness critical applications.
LCMP has proven success in stretch leveling the following products:
- Stainless Steel
- Titanium
- Aluminum (must be dry or painted)
- Brass
- Copper
- Nickel alloys
- High-temperature alloys
- Galvanized and Coated Steel
Our non-marking grips are ideal for special surfaces that are:
- Bright Annealed
- Polished/Buffed
- Painted/Coated
- Patterned/Embossed
- Plated/Clad
- Perforated
- Architectural Quality
Capabilities:
- Gauge range .010 – .150”
- Max incoming width 10 – 52”
- 69” max incoming OD; 65” max outgoing
- 40,000# max coil
- Able to break coils for size
- 16 – 24” incoming ID; 20” outgoing ID
- Paper interleave available
*Important note: Stretch leveling will not affect the gauge or physical properties of your material, but it does neck down the width of coils. The average is 1/32” – 1-16” width reduction, but can exceed 1/16”. Inquire for details.
