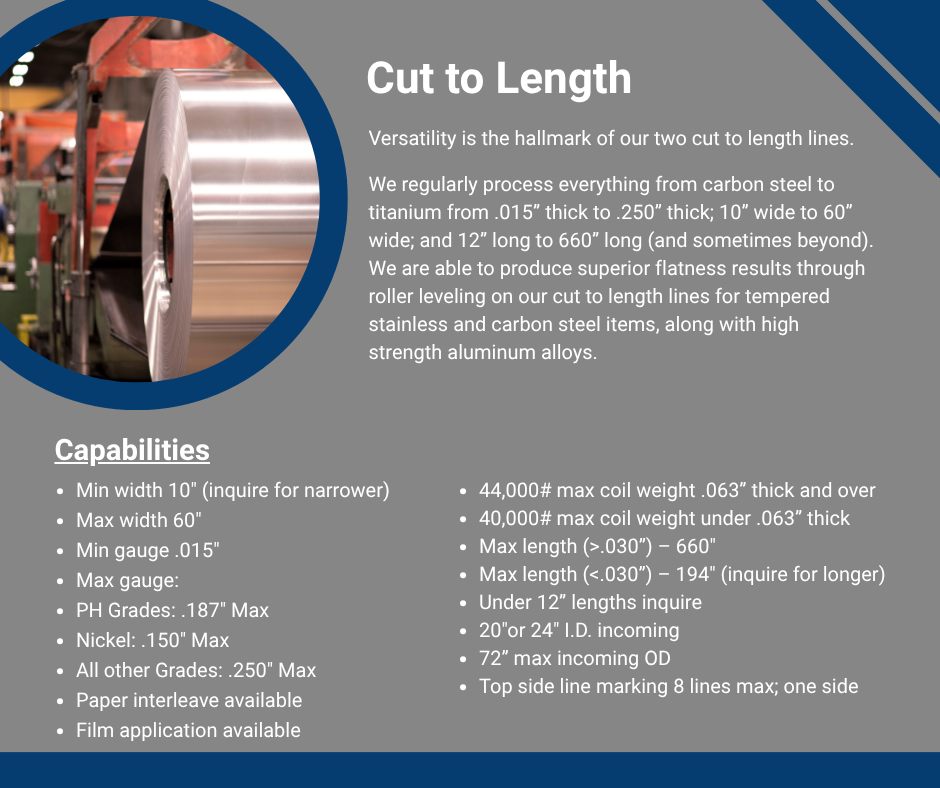

Versatility is the hallmark of our two cut to length lines.
We regularly process everything from carbon steel to titanium from .015” thick to .250” thick; 10” wide to 60” wide; and 12” long to 660” long (and sometimes beyond). We are able to produce superior flatness results through roller leveling on our cut to length lines for tempered stainless and carbon steel items, along with high strength aluminum alloys.
Capabilities:
- Min width 10″ (inquire for narrower)
- Max width 60″
- Min gauge .015″
- Max gauge:
- PH Grades: .187″ Max
- Nickel: .150″ Max
- All other Grades: .250″ Max
- Paper interleave available
- Film application available
- 44,000# max coil weight .063” thick and over
- 40,000# max coil weight under .063” thick
- Max length (>.030”) – 660″
- Max length (<.030”) – 194″ (inquire for longer)
- Under 12” lengths inquire
- 20″or 24″ I.D. incoming
- 72” max incoming OD
- Top side line marking 8 lines max; one side
